The Crete-Heat Insulated Floor Panel System is an easily assembled modular board, insulation, vapor barrier (10-mil polystyrene film), and radiant floor tube holding grid that allows for simplified installation of hydronic radiant floor heating systems. These installations can be in, but are not limited to, basements, garages, main floor slab on grade and above grade installations where concrete or gypcrete is normally used.

Providing an R-10 rating, the Crete-Heat® Insulated Floor Panel System is 2 7/8" in overall thickness, with 2" of solid EPS foam. Independently tested by Intertek Semco in Canada. Our retrofit or above grade panel provides 2 1/8 inch overall in thickness, with 1" of solid EPS foam which provides an R-6. This same panel has 23db sound reduction knobs on the lower surface. Each interlocking panel covers up to 8 sq. ft. with fasteners for 3/8", 1/2", and 5/8" radiant tubing. Our Ice Melt panel holds 3/4" - 1" PERT, PEX tubing...


Crete-Heat®

Cuts radiant heat install by as much as 2/3

Designed to hold PERT, PEX tube securely in place with wider and deeper fastener

3 thicknesses available for both new construction and retrofitting existing buildings

UV protected packaging for outdoor storage

2 different knob designs for holding 3/8" to 1" PERT, PEX tubing

Special sound deadening knobs for upper floor applications

Easy to move around site and store

Panels are placed in UV protected bags during storage

Panels lay flat and interlock

Panels are less susceptible to damage from foot or equipment traffic

Tremendous labor savings. One-person PERT, PEX installation frees up others for other jobs

PERT, PEX tube spacing is exactly on 3" increment centers. No more "close enough"

No taping required

Minimal Waste

No more balky staplers to fail you

INSULATION AND VAPOR BARRIOR

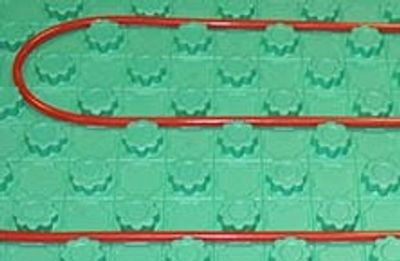

SIMPLIFIED TUBING PLACEMENT

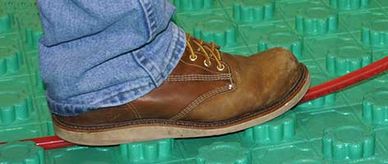

 One-person PEX installation

READY FOR CONCRETE


INSTALLATION VIDEO
