CLASSIC EDGE 350 Titanium HD Series - Specifications

Firebox Volume - 10 cu ft

Firebox Dimensions - 28"L x 29"H x 21"W

Door - 16"W x 16"H

Ash Cleanout Door - 18"W x 9"H

Water Capacity - 150 gal.

Weight - 1,350 lbs

Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)

Manufacturer's Rated Heat Output Capacity** - 170,000 Btu/hr

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

NOTE: Specifications are subject to change without notice.

**Based on EPA qualifying test.

Constructed of titanium-enhanced stainless steel, the firebox has superior corrosion resistance and excellent heat transfer performance. This allows loading the firebox for longer burn times (in some cases up to 48 hours or more*) and burning some wood that is less than perfectly seasoned.

Central Boiler recommends burning seasoned wood when possible because dry wood burns better and provides more energy for heating your home. You'll burn less wood, saving you more money and time. That is, after all, what you want your outdoor furnace to do. *Actual burn times vary based on wood types, moisture content, heat load and ambient temperature.

CLASSIC EDGE 350 Titanium HD Series

CLASSIC EDGE 350 Titanium HD Series



CLASSIC EDGE 550 Titanium HD Series - Specifications

Firebox Volume - 14 cu ft

Firebox Dimensions - 33"L x 32"H x 23"W

Door - 18"W x 18"H

Ash Cleanout Door - 18"W x 9"H

Water Capacity - 205 gal.

Weight - 1,560 lbs

Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)

Bypass Door and Alarm - Standard

Manufacturer's Rated Heat Output Capacity* - 178,000 Btu/hr

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

NOTE: Specifications are subject to change without notice.

*Based on EPA qualifying test.

Constructed of titanium-enhanced stainless steel, the firebox has superior corrosion resistance and excellent heat transfer performance. This allows loading the firebox for longer burn times (in some cases up to 48 hours or more*) and burning some wood that is less than perfectly seasoned.

Central Boiler recommends burning seasoned wood when possible because dry wood burns better and provides more energy for heating your home. You'll burn less wood, saving you more money and time. That is, after all, what you want your outdoor furnace to do. *Actual burn times vary based on wood types, moisture content, heat load and ambient temperature.


CLASSIC EDGE 550 Titanium HD Series

CLASSIC EDGE 550 Titanium HD Series



CLASSIC EDGE 750 Titanium HD Series - Specifications

Firebox Volume - 24 cu ft

Firebox Dimensions - 37"L x 44"H x 26"W

Door - 21"W x 25"H

Ash Cleanout Door - 19"W x 11"H

Water Capacity - 330 gal.

Weight - 2,018 lbs

Supply/Return Ports - 1 set of 1-1/4" supply and return ports, 2 sets of 3/4" supply and return ports

Bypass Door and Alarm - Standard

Manufacturer's Rated Heat Output Capacity** - 240,000 Btu/hr

Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections

NOTE: Specifications are subject to change without notice.

**Based on EPA qualifying test.

Constructed of titanium-enhanced stainless steel, the firebox has superior corrosion resistance and excellent heat transfer performance. This allows loading the firebox for longer burn times (in some cases up to 48 hours or more*) and burning some wood that is less than perfectly seasoned.

Central Boiler recommends burning seasoned wood when possible because dry wood burns better and provides more energy for heating your home. You'll burn less wood, saving you more money and time. That is, after all, what you want your outdoor furnace to do. *Actual burn times vary based on wood types, moisture content, heat load and ambient temperature.

CLASSIC EDGE 750 Titanium HD Series

CLASSIC EDGE 750 Titanium HD Series

EASY OPERATION



The FireStar combustion controler monitors all functions of the furnace and optimizes the gasification process automatically. Working much like a car's engine control unit (ECU), the FireStar optimizes furnace performance by using sensors to decide how to control and independently adjust the primary and/or secondary air for a cleaner and more efficient burn. It can even shut the fan off to preserve heat if it runs out of wood. The FireStar features integrated wi-fi so you can monitor your furnace from anywhere with no additional hardware except a router and internet access.

EASY MAINTENANCE

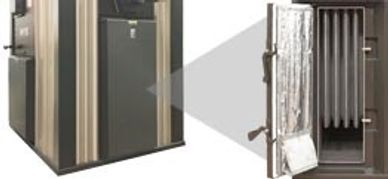

The patent-pending vertical Easy View™ Heat Exchanger is an industry exclusive. Featuring a removable rear panel that provides full access without the use of tools, it's easy to access for quick inspections and even easier to maintain if cleaning is necessary.

EASY INSTALLATION


Many owners choose to install their own furnace because the installation can be easily completed using the installation manual and the DYI videos.  Connect the piping and heat exchangers to your existing system and the Classic Edge is ready to go to work.


COLOR OPTIONS

                                                                                                       Taupe / Bronze

                                                                                              Realtree® Camo / Bronze

                                                                                                          Green / Bronze

                                                                                                       Charcoal / Bronze
